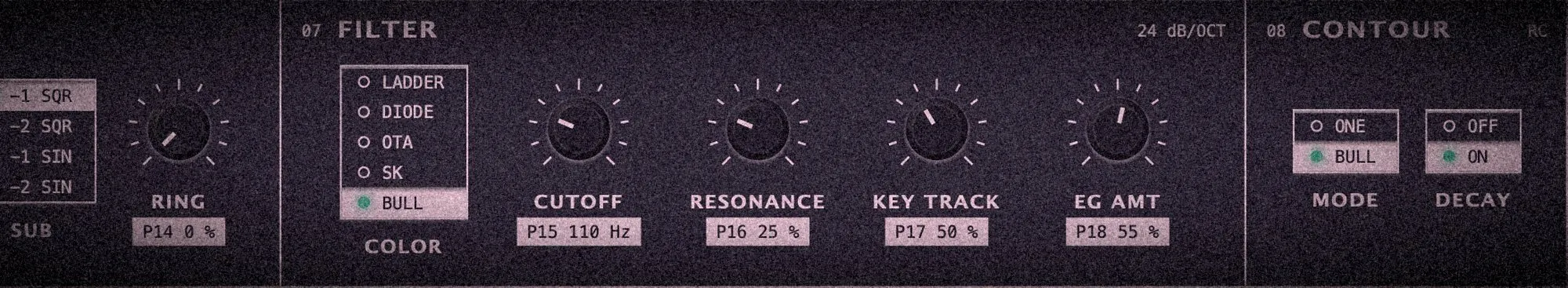

Five filters
LADDER, the fat and round 24 dB transistor ladder. DIODE, 18 dB, the squealing resonance of acid lines. OTA, The-One's CEM3320 with its whole gain chain. SK, a growling 12 dB Sallen-Key. BULL, the Moog Taurus I ladder.

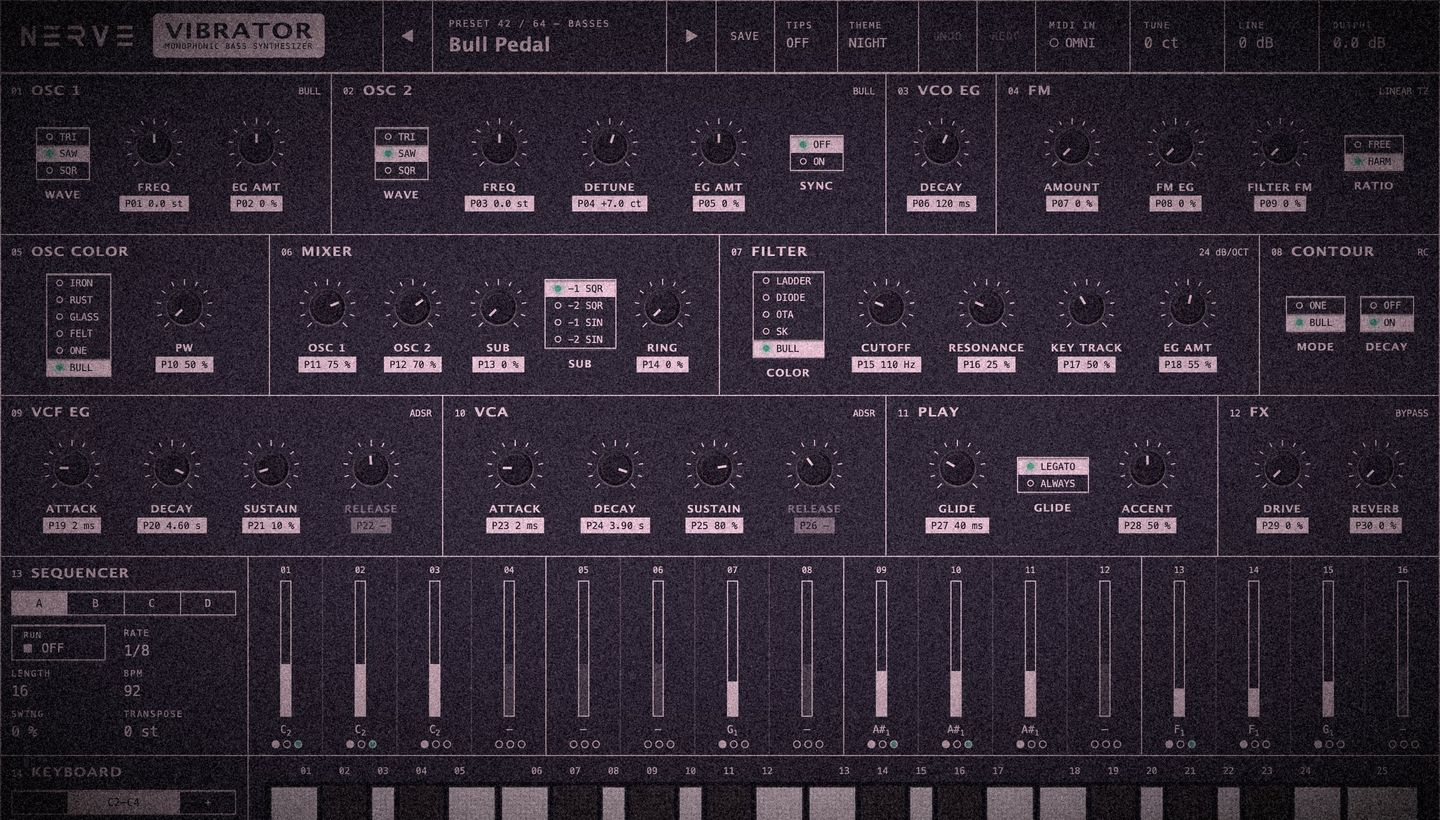

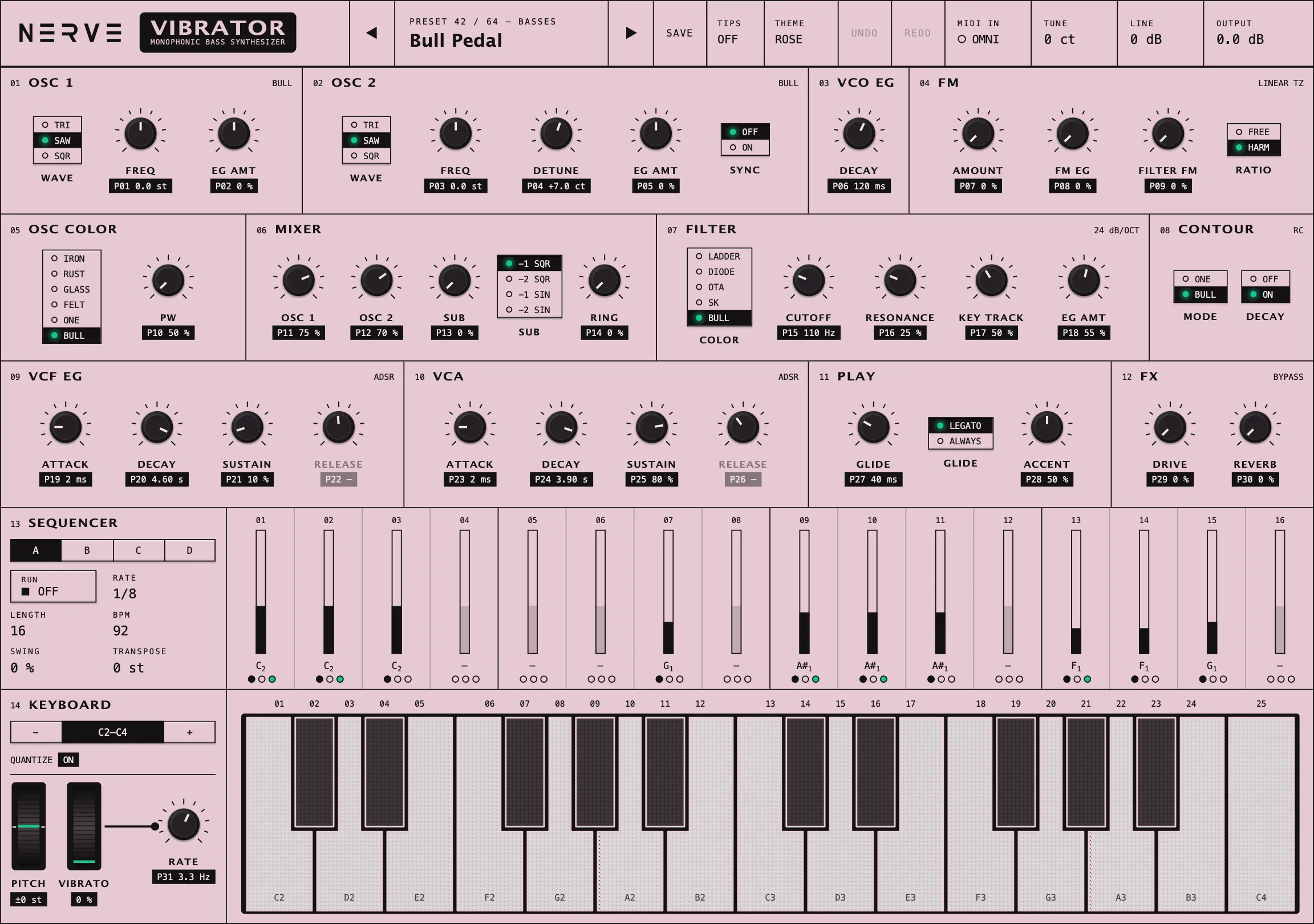

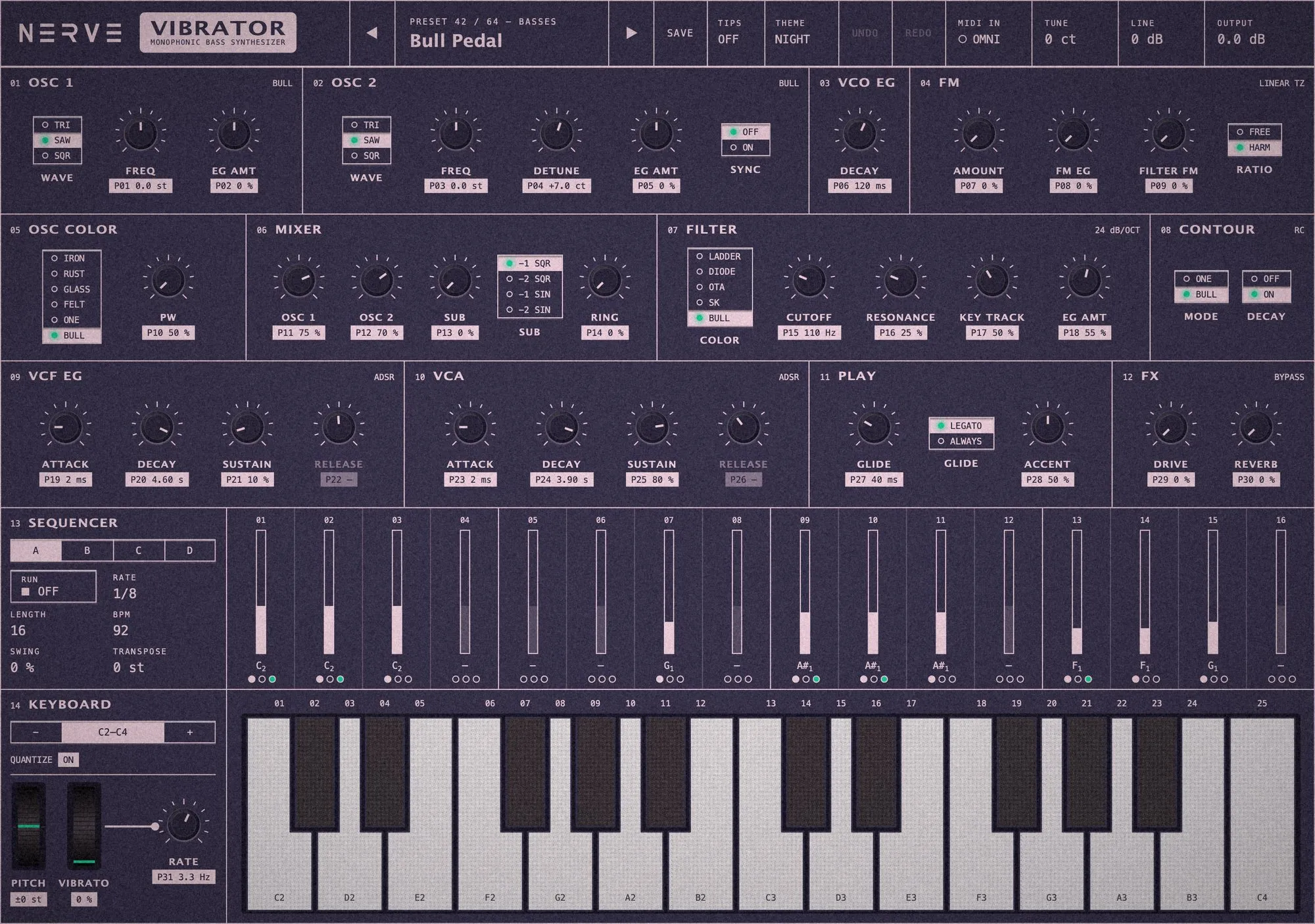

The instrument
Two oscillators, a sub, FM and ring, The-One's filter and its whole gain chain, the Moog Taurus I circuits rebuilt from its schematic, a 16-step sequencer with accent and slide. From fat, long basses to acid lines, all the way to kicks. Free, no license.

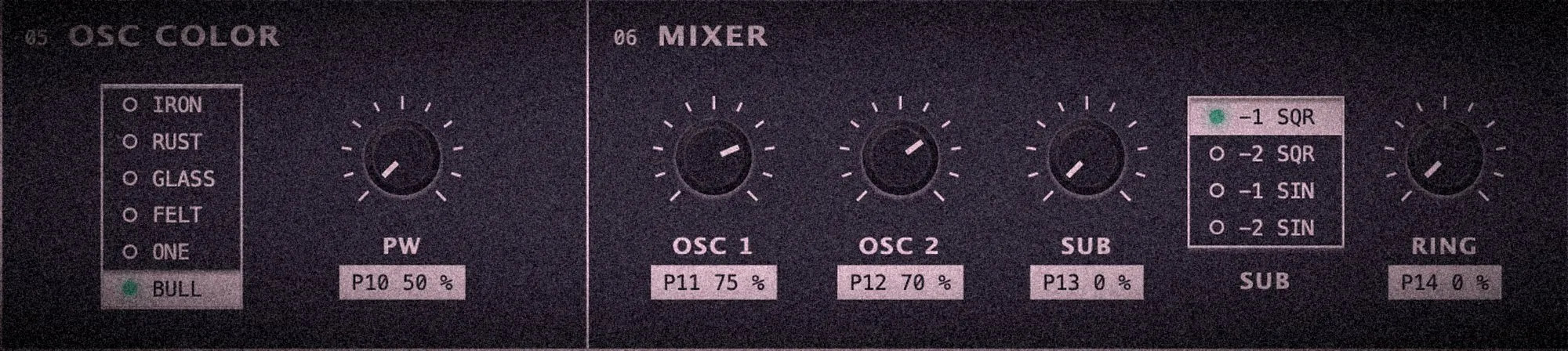

Six oscillator colors
From a modern, stable VCO (IRON) to drifting vintage (RUST), from pure (GLASS) to soft (FELT), plus The-One's CEM3340 oscillator (ONE) and the Moog Taurus I one (BULL).

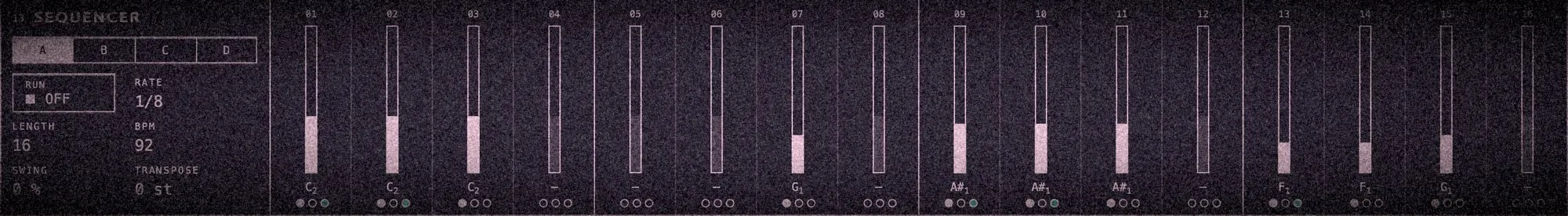

16-step sequencer
Accent, slide, four banks and a line for every preset. The keyboard transposes the sequence while it plays.

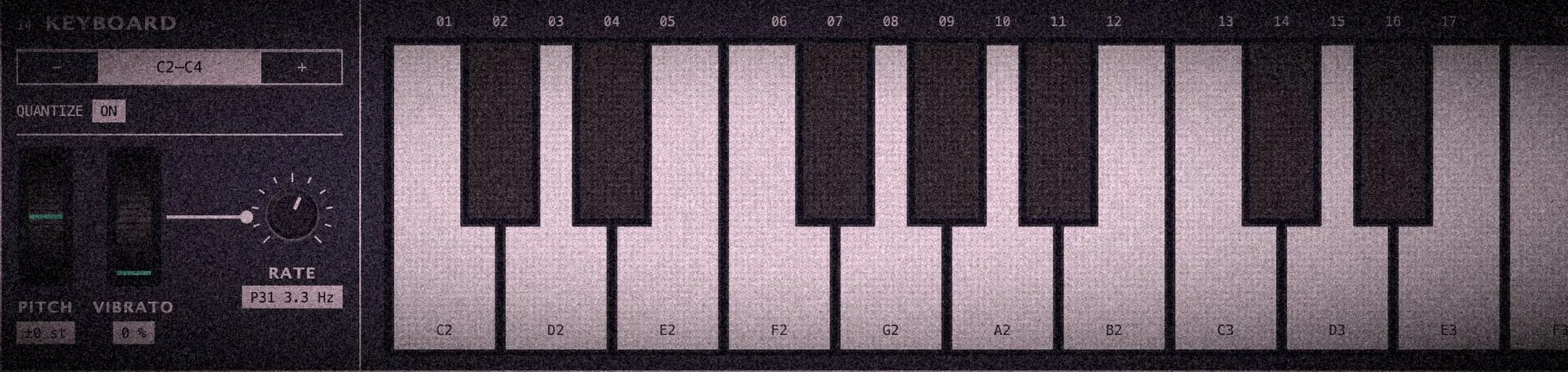

Keyboard and wheels
A two-octave touch keyboard, played note by note or as a continuous glide, a pitch wheel and a vibrato wheel.
Preview
The instrument's engine, in your browser, with its 64 presets and their sequences: pick a preset, hit RUN, turn the knobs, play.
The playable preview needs a computer: large screen, keyboard or MIDI controller.
This browser cannot run the preview (AudioWorklet / WebAssembly required).
Specifications
- Voice
- Monophonic · legato or always glide
- Oscillators
- 2 VCOs + sub · through-zero FM · sync · ring · 6 colors
- Filter
- 5 colors: ladder, diode, OTA CEM3320, Sallen-Key, BULL (Moog Taurus I)
- Envelopes
- Pitch · CEM3310 VCF and VCA ADSR · Taurus I contours
- Sequencer
- 16 steps · 4 banks · accent, slide · keyboard transpose
- Performance
- 2-octave keyboard · pitch and vibrato wheels
- Presets
- 64 (44 basses, 20 kicks) + user presets
- Formats
- VST3 · AU · Standalone
- Systems
- macOS 11+ Universal · Windows 10+ 64-bit
- License
- Free · no license, no account
Questions
Is it really free?
Yes. No license, no account, no time limit and no noise: download, install, play.
Do I need an internet connection?
No. VIBRATOR never connects to the internet.
Can I save my own sounds?
Yes: SAVE stores the sound and the four sequencer banks as a user preset.
